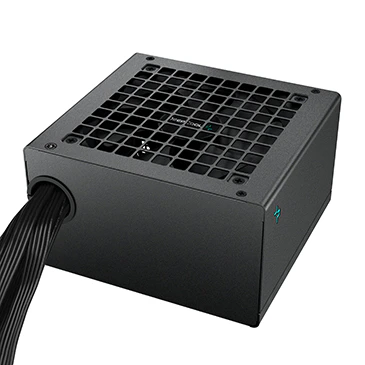

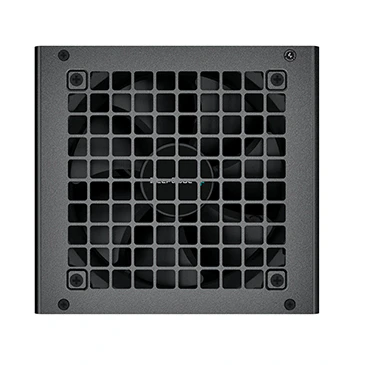

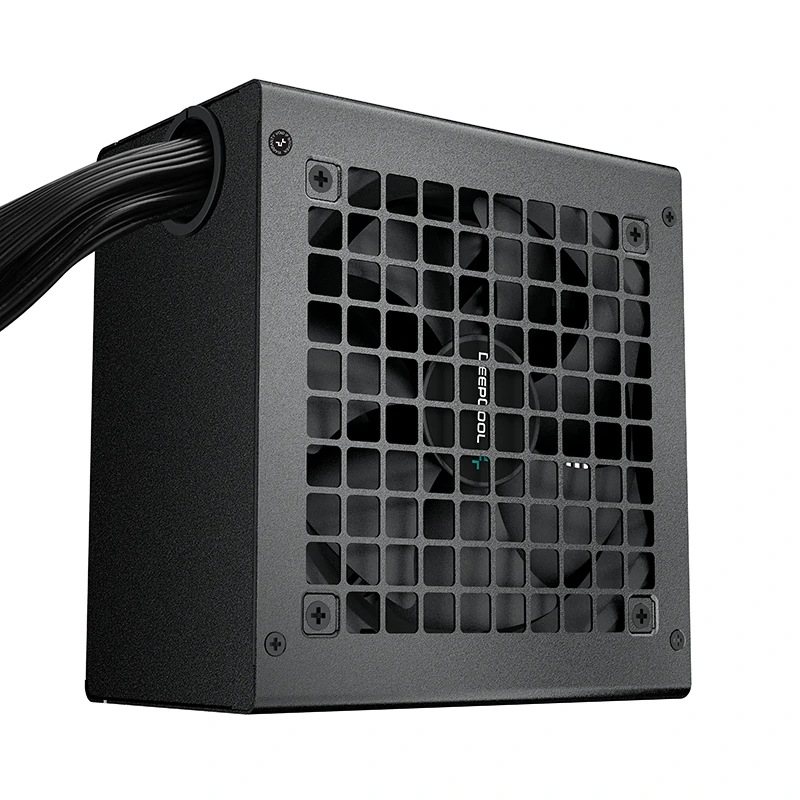

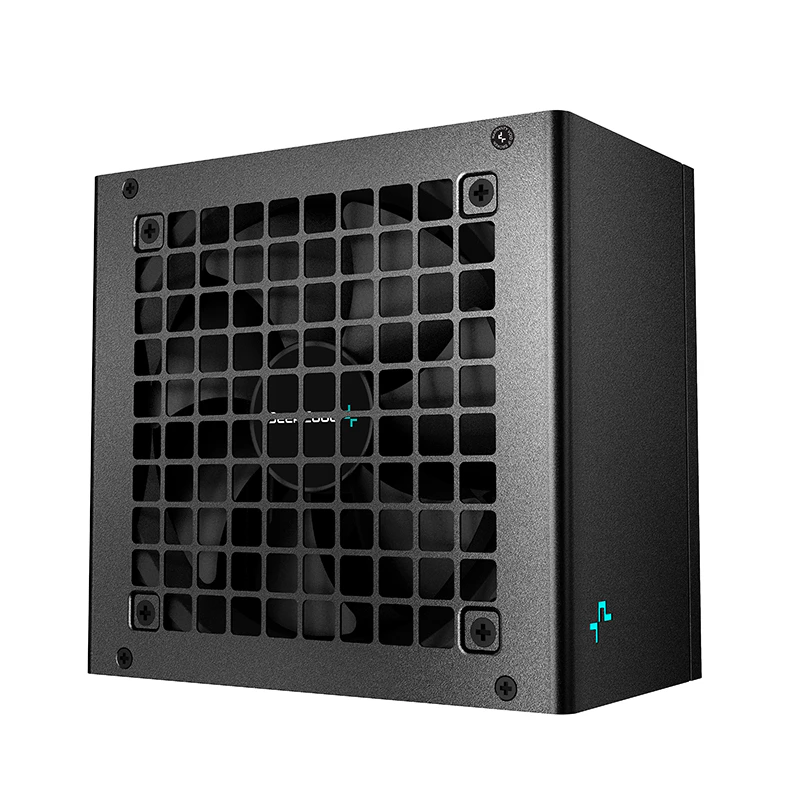

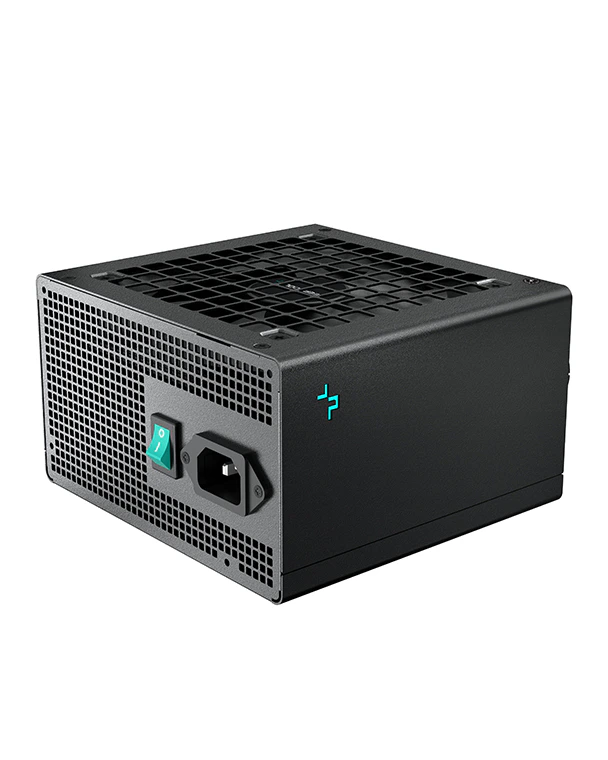

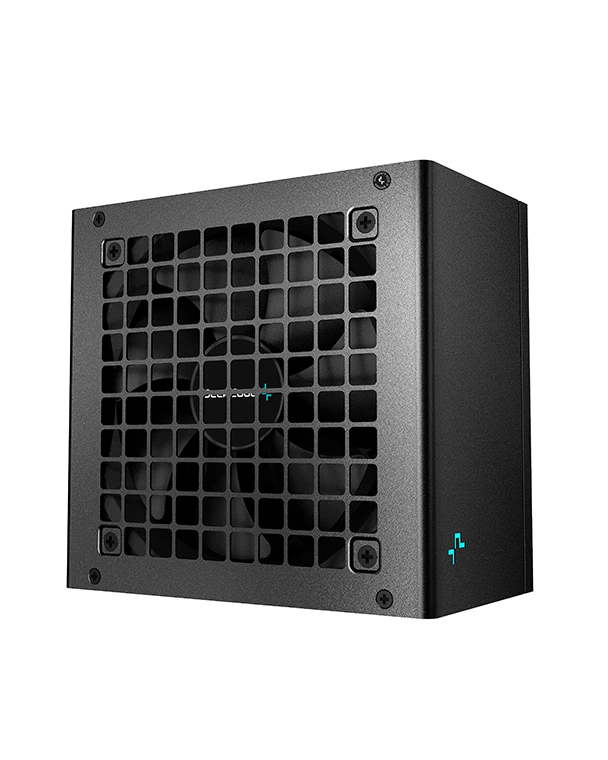

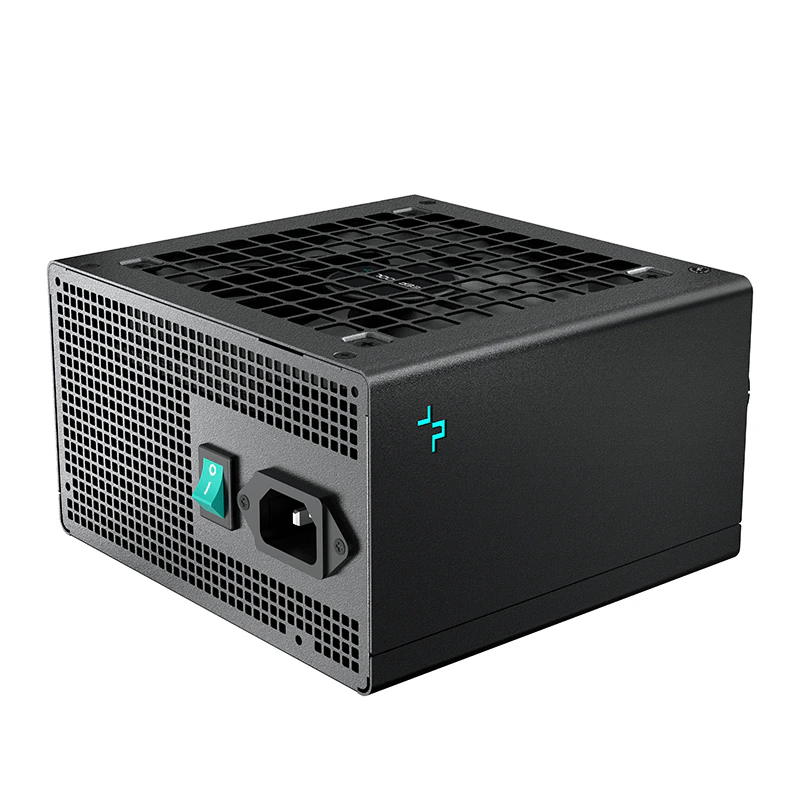

PK450D
DeepCool PK-D 시리즈 파워 서플라이는 안정적인 80 플러스 브론즈 효율을 제공하며, 안정성과 정숙함을 원하는 사용자의 시스템에 전원을 효과적으로 공급합니다.
색상
블랙
모델
PK450D
80 플러스 브론즈 파워 서플라이
PK450D
The DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
Beautiful in Bronze
The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.

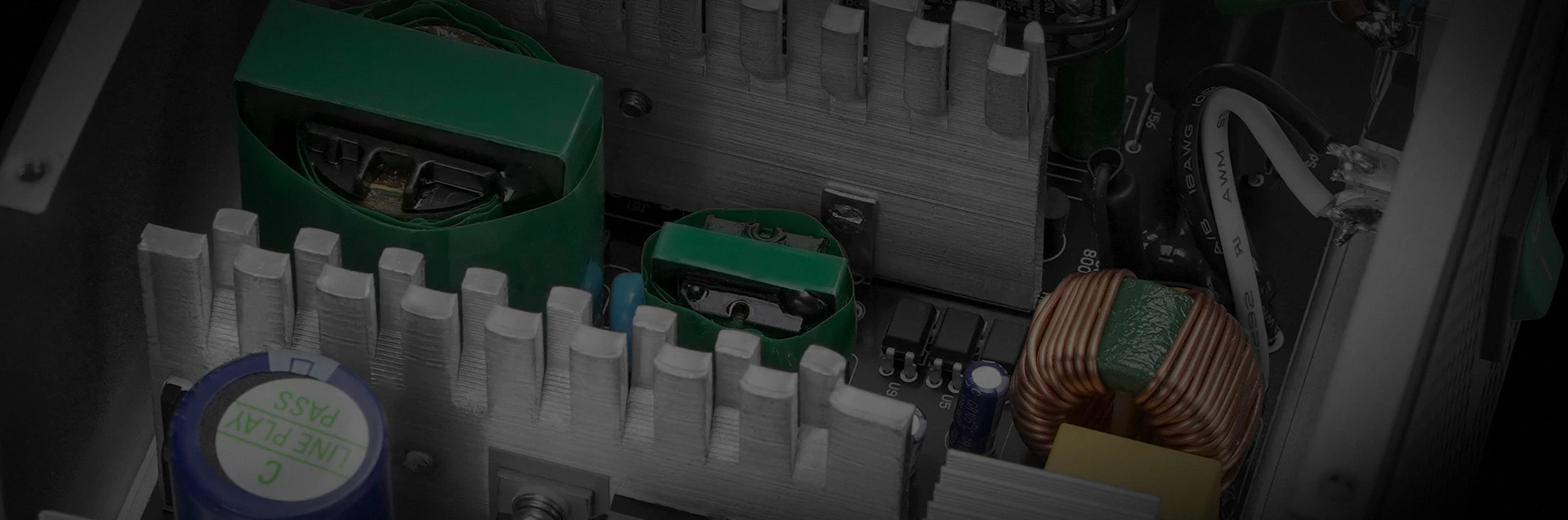

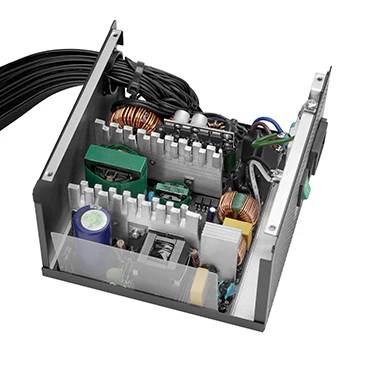

DC-DC Conversion
A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
Tough and Durable
Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.
ErP Lot 6 Compliant
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.

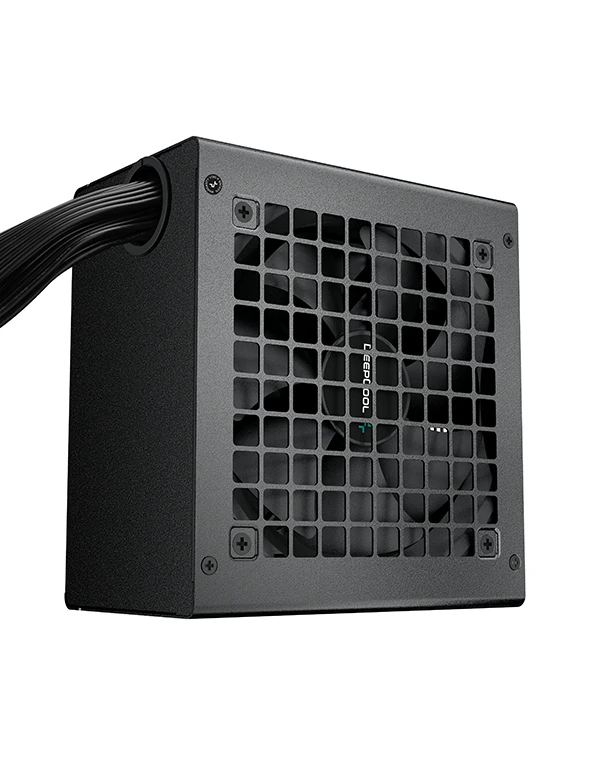

Stealth Black
Black direct power cables help blend in with other components.
Main Power Connector 24 (20+4)Pin x1
X1
EPS 12V Connector8 (4+4)Pin x1
X1
PCI-E (6+2)Pin x2
X1
SATA x3
X2

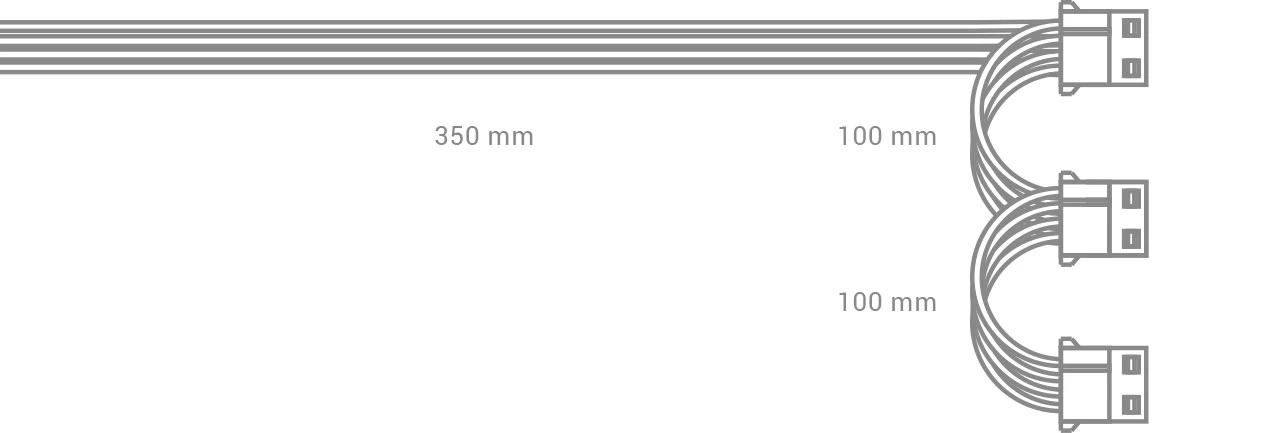

4Pin Peripheral x3
X1
제품사양
종류ATX12V V2.4
제품 사이즈s150×140×86mm (W x L x H)
80PLUS 인증Bronze
팬크기120mm
Fan BearingHypro Bearing
TopologyActive PFC+DC to DC
CapacitorsTaiwan capacitor
전원안전신호100-150ms
전력저장시간≥16ms(80% Load)
효율≥85% Under Typical Load(50% Loading)
보호장치SCP,OPP,OTP,OVP,OCP,UVP
작동온도0 - 40 °C
규정CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS
Erp RegulationErP 2013
MTBF100,000 Hours
EAN6933412711759
P/NR-PK450D-FA0B-EU
다운로드
PK450D Manual.pdf
